Huge Frame Structure Rubber Hydraulic Vulcanizing Press Machine (Xlb-D800X800)

  • Model NO.: XLB-D800X800
  • Condition: New
  • Automatic Grade: Automatic
  • HS Code: 84778000, 84778000
  • Quality Guarantee: 5 Years
  • Heating Type: Electrical or Oil or Steam
  • Hydraulic System: Yuken
  • Trademark: RUNNING
  • Specification: General Rubber Machinery
  • Certification: CE, ISO
  • Customized: Customized
  • Structure: Horizontal
  • Structure Style: Frame Type
  • Voltage: 220V/380V/410V/460V/480V
  • Motor Brand: Siemens
  • Relay: Schneider
  • Transport Package: FCL/LCL
  • Origin: China
Product Description
Production Name: Huge Frame Structure Rubber Hydraulic Vulcanizing Press Machine XLB-D800X800
Model:  XLB-D800X800
Application: The machine applies to vulcanizing various kinds of rubber and plastic model products as well as non-model products.

Salient Features
1. Superior Mixing Performance.
2. Low Operating Cost with High Productivity.
3. Compact Construction, maximum Floor Utilization.
4. Latest Technology Update, Meets Current World Standards.
5. Maintenance Free.
6. Reliable and Experienced Service Back Up.
7. Easy to Install & Ready to Run.
8. Auto reversing electric Panel.
9. Simple & easy maintenance.
 Huge Frame Structure Rubber Hydraulic Vulcanizing Press Machine (Xlb-D800X800)

 Structural Features
1. With frame structure and best hydraulic unit, they are accurately processed and wear resistance.
2. Electrical PLC control, convenient, accurate and saving in labor
3. Custom design for non-standard one

Technical Parameters
Item XLB240×240×2 XLB350×350×2 XLB400×400×2 XLB500×500×2 XLB600×600×2 XLB700×700×2
Total pressure (MN) 0.15 0.25 0.5 0.63 1.00 1.20
Daylight (mm) 125 125 125 125125 125 200
Platen Layers 2 2 2 2 2-4 2
Unit area pressure of hot plate(Mpa) 2.60 2.04 3.13 2.52 2.77 2.45
Piston stroke (mm) 250 250 250 250 250 250
Heating mode Electricity Electricity Electricity/
Stream
Electricity/
Stream
Electricity/
Stream
Electricity/
Stream
Main motor power (KW) 2.2 2.2 2.2 2.2 2.2 2.2
Size: L × W × H (mm) 1200×350×1300 1400×480×1380 1600×500×1480 1750×600×1540 1880×720×1680 2000×850×1750
Item XLB750×850×2/4 XLB-Q900×900×2 XLB-DQ1200
×1200×2
XLB-DQ1300
×2000×1
XLB-Q1200
×2500×1
XLB-Q1500
×2000×1
XLB-Q2000
×3000×1
Total pressure (MN) 1.60 2.00 3.15 5.60 7.50 10.00 18.00
Daylight (mm) 200 300 200 400 400 400 400
Platen Layers 2-4 2 2 1 1 1 1
Unit area pressure of hot plate(Mpa) 2.51 2.47 2.19 2.15 2.5 3.33 3
Piston stroke (mm) 400 400 400 400 400 400 400
Heating mode Electricity/
Stream
Stream 22 21.5 25 33.5 30
Main motor power (KW) 3 5.5 3 8 9.5 11 26
Size: (L × W × H) (mm) 2250×1200×2200 1400×900
×2400
(Mainframe)
1685×1320×2450 2000×1860×2500 2560×1700×2780 2810×1550×3325 2900×3200×2860

Structural Features
1. With frame structure and best hydraulic unit, they are accurately processed and wear resistance.
2. Electrical PLC control, convenient, accurate and saving in labor
3. Custom design for non-standard one

 Huge Frame Structure Rubber Hydraulic Vulcanizing Press Machine (Xlb-D800X800)
Huge Frame Structure Rubber Hydraulic Vulcanizing Press Machine (Xlb-D800X800)


Services Commitment
1. Our engineers can design target machines for you and send the drawing to confirm.
 2. In the process of production, we will take photos and send to customers for you tracking.
3. Documents such as packing list, commercial invoice, and bill of lading etc. will be sent after the delivery.
4. We could supply free English foundation DWG, installation drawing, user guide, maintenance manual and part drawing.
 5. We supply overseas technical support
 6.Test Machine Before Delivery, you only need to connect the wires to the outside the control cabinet.

FAQ
1. Delivery time of the rubber machines?
 This is specially designed machine according to your specific requirement.
 From engineer designing to production completion, it needs about 25 to 35 days.

2. What does your factory do regarding quality control?
 We pay much more importance to quality control from the very beginning to the end of production.
 Every machine will be fully assembled and carefully tested before shipment.

3. What's the machine quality guarantee?
 Quality guarantee time is one year.We choose world famous brand components to keep our machine in perfect working condition.

4. Are you able to give installation and commissioning overseas? How long time will it take?
 Yes, we can supply overseas service and technical support but customer needs to pay for the cost of the installation.
 Small machine usually takes within 2~3 days.
 Big plant usually takes about 30 days.

5. How can I trust you to deliver the right machine as I ordered?
We will absolutely deliver a good quality machine as we discussed and confirmed in the order.
 The core of our company culture is innovation,quality,integrity and efficiency. Also we have had many good cooperation with world famous rubber production manufacturers. If you come to our factory, we can show you're the user around us.

6. How can we go to your side?
We are located in Qingdao City, Shandong province, China. The name of airport is Qingdao liuting airport.
We will pick up you at the airport.
 Our Packing
Huge Frame Structure Rubber Hydraulic Vulcanizing Press Machine (Xlb-D800X800)


Contact Us
Huge Frame Structure Rubber Hydraulic Vulcanizing Press Machine (Xlb-D800X800)



12

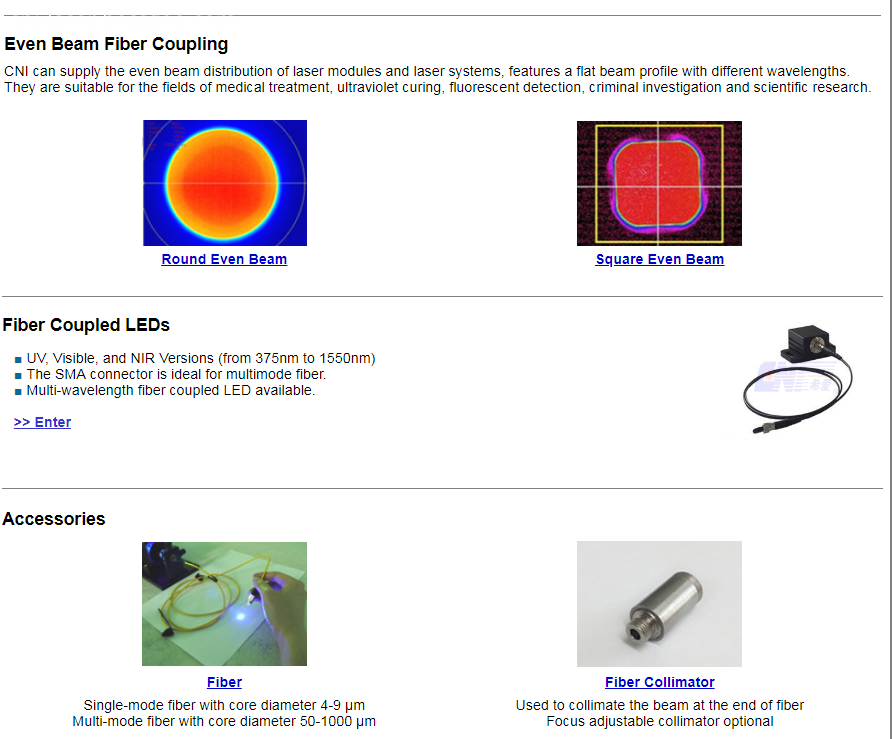

Fiber Coupled Laser
